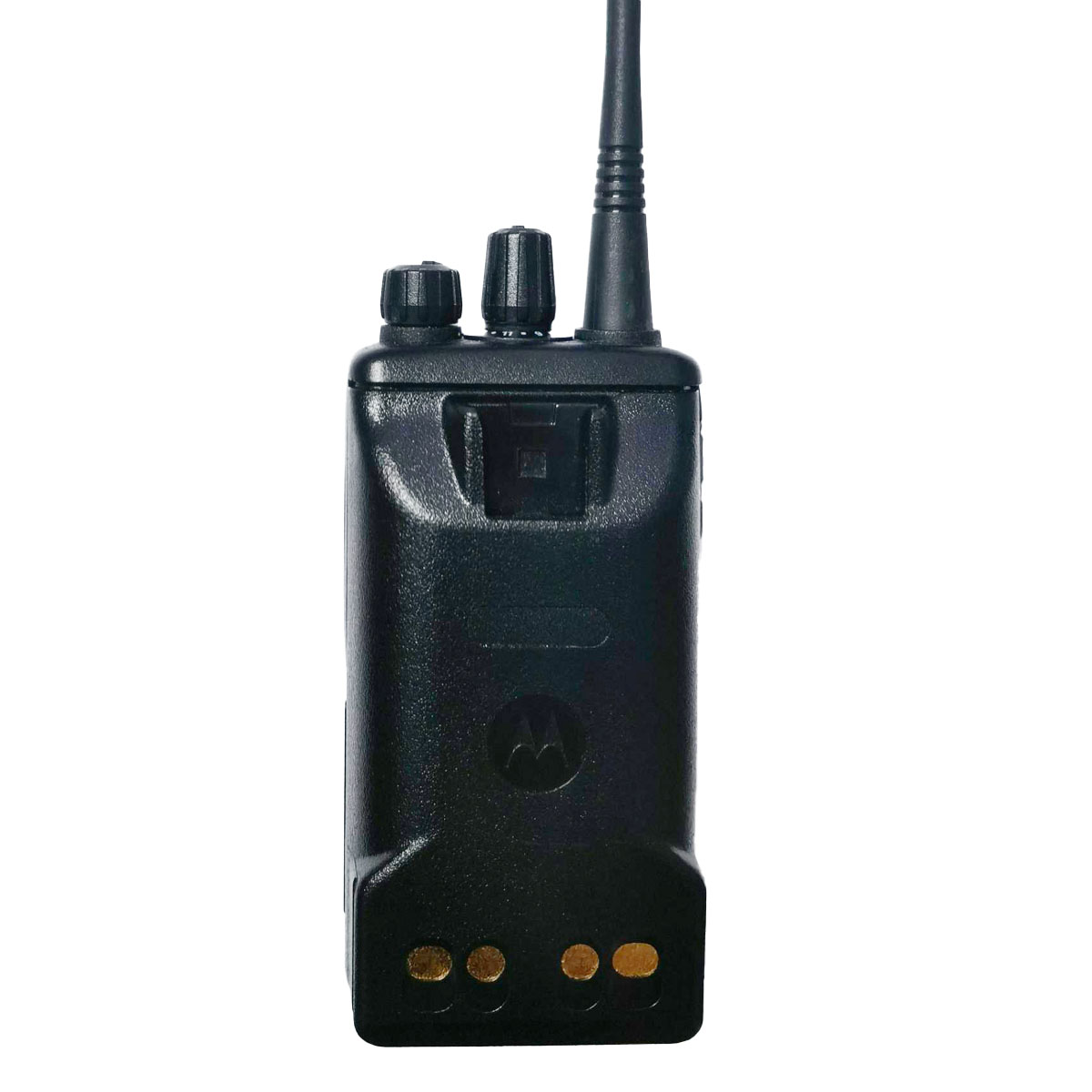

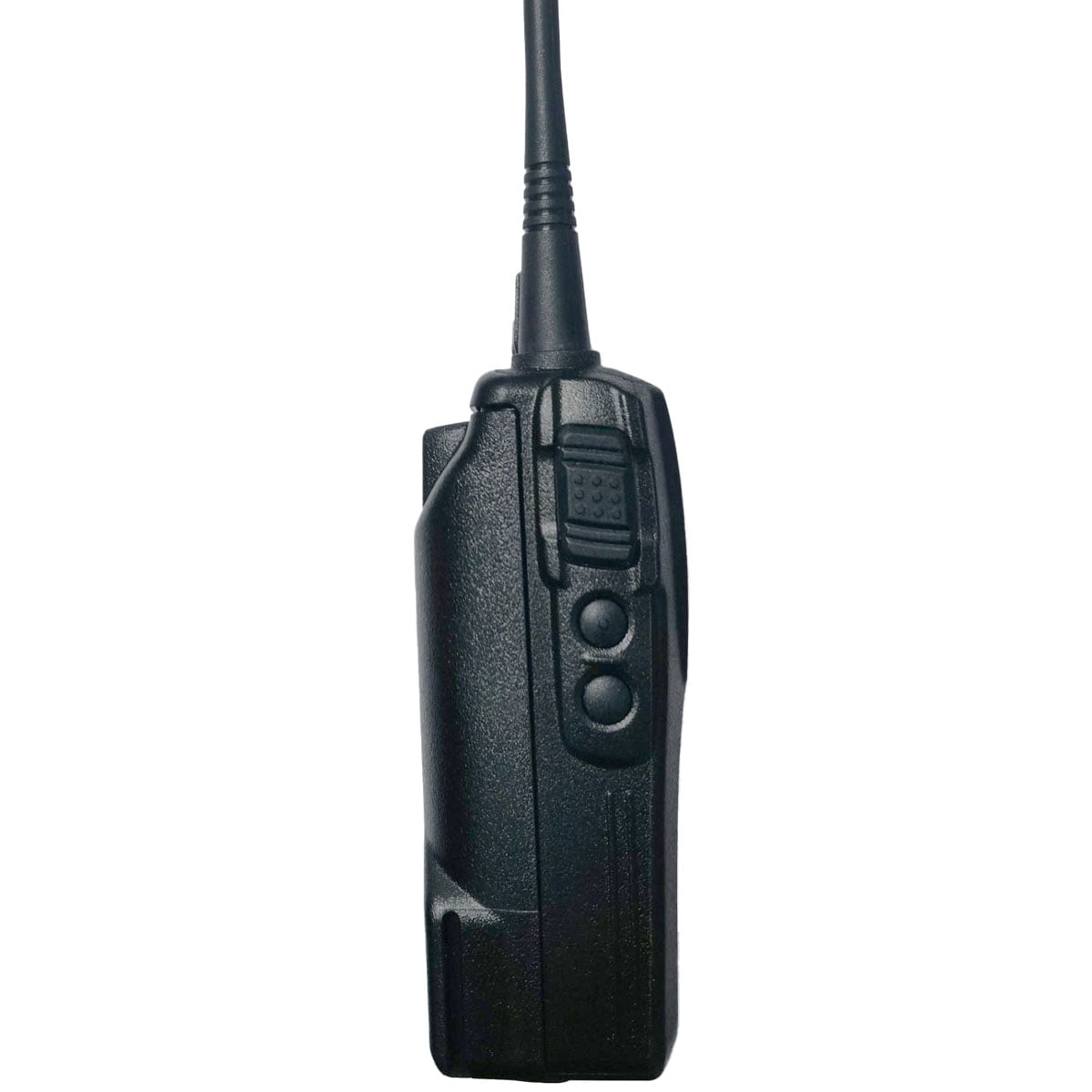

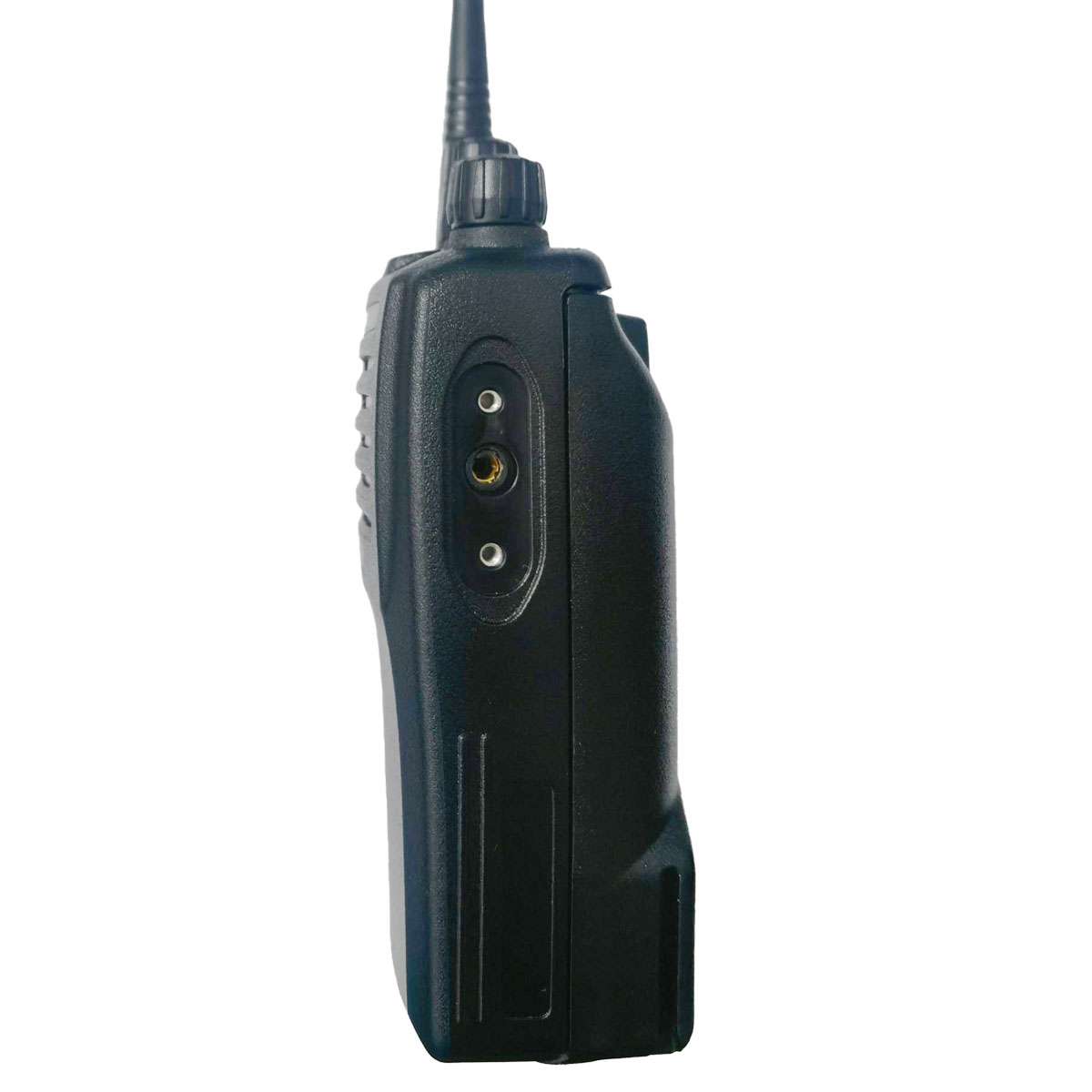

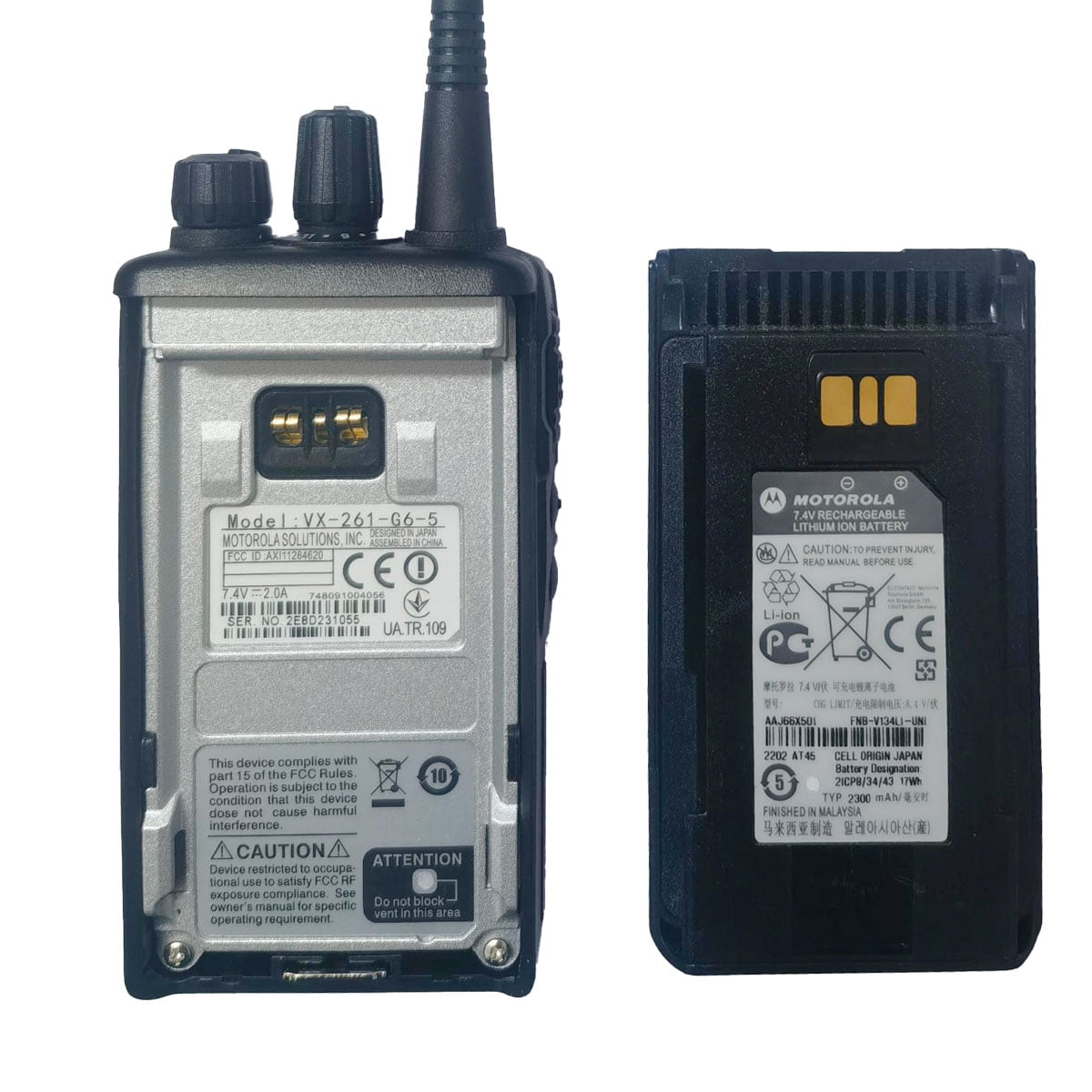

Motorola VX-261 VX261 High Quality UHF Portable Two-Way Radio G6-5 403-470MHz
Product details
| Management number | 230326554 | Release Date | 2026/06/18 | List Price | US$46.00 | Model Number | 230326554 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Frequency Range VHF: D0:136-174 MHz/UHF: G6:403-470 MHz Dimensions (H x W x D) with FNB-V133LI-UNI 109 x 58 x 32 mm (4.3 x 2.3 x 1.3 in) Weight 281 g (9.9 oz) (w/FNB-V133LI-UNI, Antenna, Belt Clip) 330 g (11.6 oz) (w/FNB-V134LI-UNI, Antenna, Belt Clip) Power Output 5/1W Channel Spacing 25/20/12.5 kHz Audio Output 700 mW @ 16 Ohms (Internal)/500 mW @ 4 Ohms (External) Number of Channels 16 Number of Groups 1 Programmable Buttons 2 PC Programming Software CE150 Radio to Radio Cloning Yes Battery Life FNB-V133LI-UNI: 10.8 h (8.8 h w/o Saver)/FNB-V134LI-UNI: 19 h (15.5 h w/o Saver) IP Rating IP55 Power Supply Voltage 7.4 V DC (Nominal) Operating Temperature Range –30° C to +60° C (–22° F to +140° F) Frequency Stability ±2.5 ppm RF Input-Output Impedance SMA 50 Ohm RECEIVER SPECIFICATIONS measured by EN 300 086 Circuit Type Double Conversion Superheterodyne Sensitivity (20dB SINAD) -2 dBμV Typical Adjacent Channel Selectivity 65/60 dB (25 kHz/12.5 kHz) Frequency VHF: 136-174 MHz/UHF: 403-470 MHz Channel Spacing 25/20/12.5 kHz Intermodulation 65 dB Spurious Image Rejection 70 dB Hum and Noise 40 dB Audio Output (5% THD) 700 mW @ 16 Ohms (Internal)/500 mW @ 4 Ohms (External) Audio Distortion < 5% Conducted Spurious -57 dB TRANSMITTER SPECIFICATIONS measured by EN 300 086 Output Power 5/1 Watt Modulation 16K0F3E / 14K0F3E / 11K0F3E Maximum Deviation ±5.0 kHz / ±4.0 kHz / ±2.5 kHz Conducted Spurious Emissions 70 dB Below Carrier FM Hum and Noise 40 dB Audio Distortion (@1 kHz) < 5 %
- Frequency Range VHF: D0:136-174 MHz/UHF: G6:403-470 MHz
- Dimensions (H x W x D)
- with FNB-V133LI-UNI 109 x 58 x 32 mm (4.3 x 2.3 x 1.3 in)
- Weight 281 g (9.9 oz) (w/FNB-V133LI-UNI, Antenna, Belt Clip)
- 330 g (11.6 oz) (w/FNB-V134LI-UNI, Antenna, Belt Clip)
- Power Output 5/1W
- Channel Spacing 25/20/12.5 kHz
- Audio Output 700 mW @ 16 Ohms (Internal)/500 mW @ 4 Ohms (External)
- Number of Channels 16
- Number of Groups 1
- Programmable Buttons 2
- PC Programming Software CE150
- Radio to Radio Cloning Yes
- Battery Life FNB-V133LI-UNI: 10.8 h (8.8 h w/o Saver)/FNB-V134LI-UNI: 19 h (15.5 h w/o Saver)
- IP Rating IP55
- Power Supply Voltage 7.4 V DC (Nominal)
- Operating Temperature Range –30° C to +60° C (–22° F to +140° F)
- Frequency Stability ±2.5 ppm
- RF Input-Output Impedance SMA 50 Ohm
- RECEIVER SPECIFICATIONS measured by EN 300 086
- Circuit Type Double Conversion Superheterodyne
- Sensitivity (20dB SINAD) -2 dBμV Typical
- Adjacent Channel Selectivity 65/60 dB (25 kHz/12.5 kHz)
- Frequency VHF: 136-174 MHz/UHF: 403-470 MHz
- Channel Spacing 25/20/12.5 kHz
- Intermodulation 65 dB
- Spurious Image Rejection 70 dB
- Hum and Noise 40 dB
- Audio Output (5% THD) 700 mW @ 16 Ohms (Internal)/500 mW @ 4 Ohms (External)
- Audio Distortion < 5%
- Conducted Spurious -57 dB
- TRANSMITTER SPECIFICATIONS measured by EN 300 086
- Output Power 5/1 Watt
- Modulation 16K0F3E / 14K0F3E / 11K0F3E
- Maximum Deviation ±5.0 kHz / ±4.0 kHz / ±2.5 kHz
- Conducted Spurious Emissions 70 dB Below Carrier
- FM Hum and Noise 40 dB
- Audio Distortion (@1 kHz) < 5 %
| Brand | WICJIE |
|---|---|
| Battery consumption type | Changeable Disposable Battery |
| Channels | 16 |
| Watts | 5 W |
| Accessories included | Antenna, Belt Clip |
| Battery size | AA |
| Power type | Battery |
| Assembled product weight | 2 lb |
| Assembled product height | 2 in |
| Has written warranty | No |
| Has nrtl listing certification | N |
| Volts | 7.4 V |
